GRN HV-BOX Gen 1

Delivery time 2-3 weeks - The product is produced on request

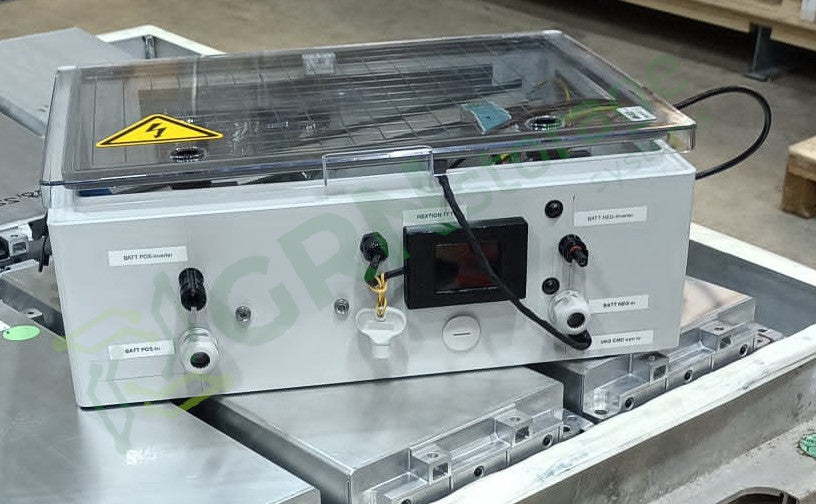

GRN HV-Box contain all you need to run a High Voltage storage system

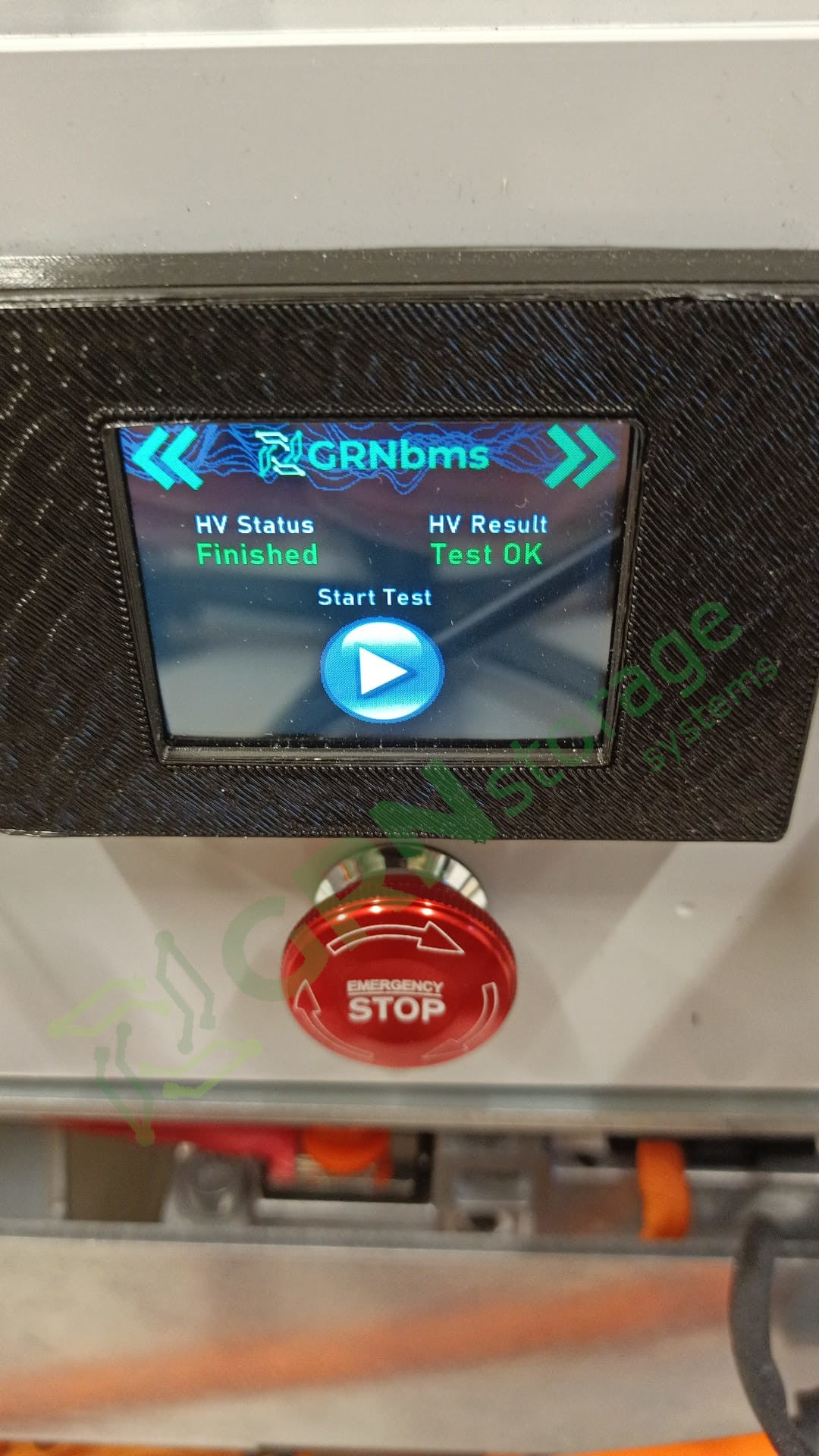

This system makes your high-voltage storage safe. It has an integrated isolation and self-test that checks all components when the battery is switched on and monitors the switch-on process including precharge. In addition, the battery housing is also checked for insulation - so that it is ensured that no life-threatening voltage is present on components when switched on.

All the GRN ecosystem components that you need to operate a storage system are installed and after software configuration ready to use.

Whats inside ?

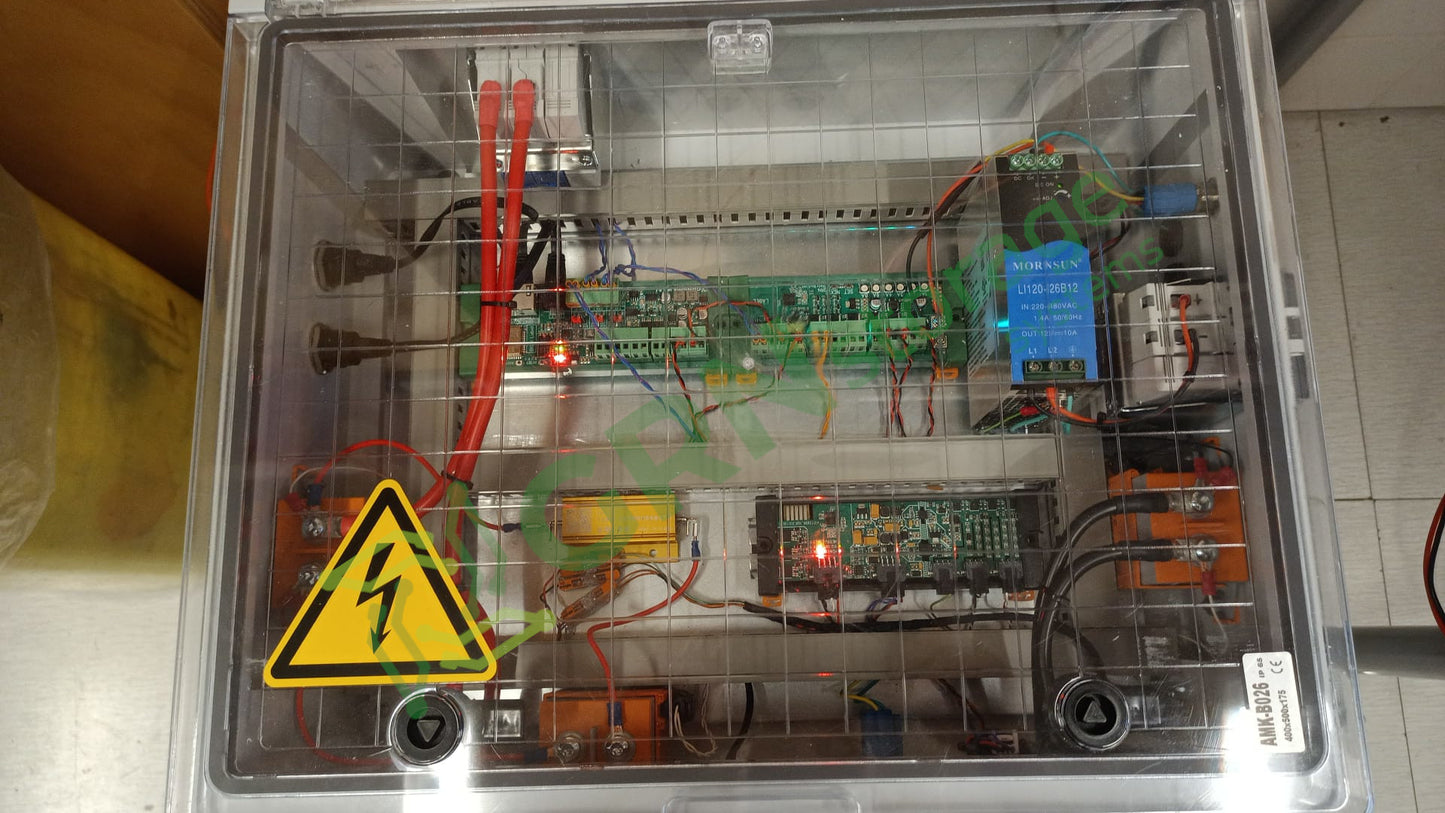

• GRN HV-Box fully wired

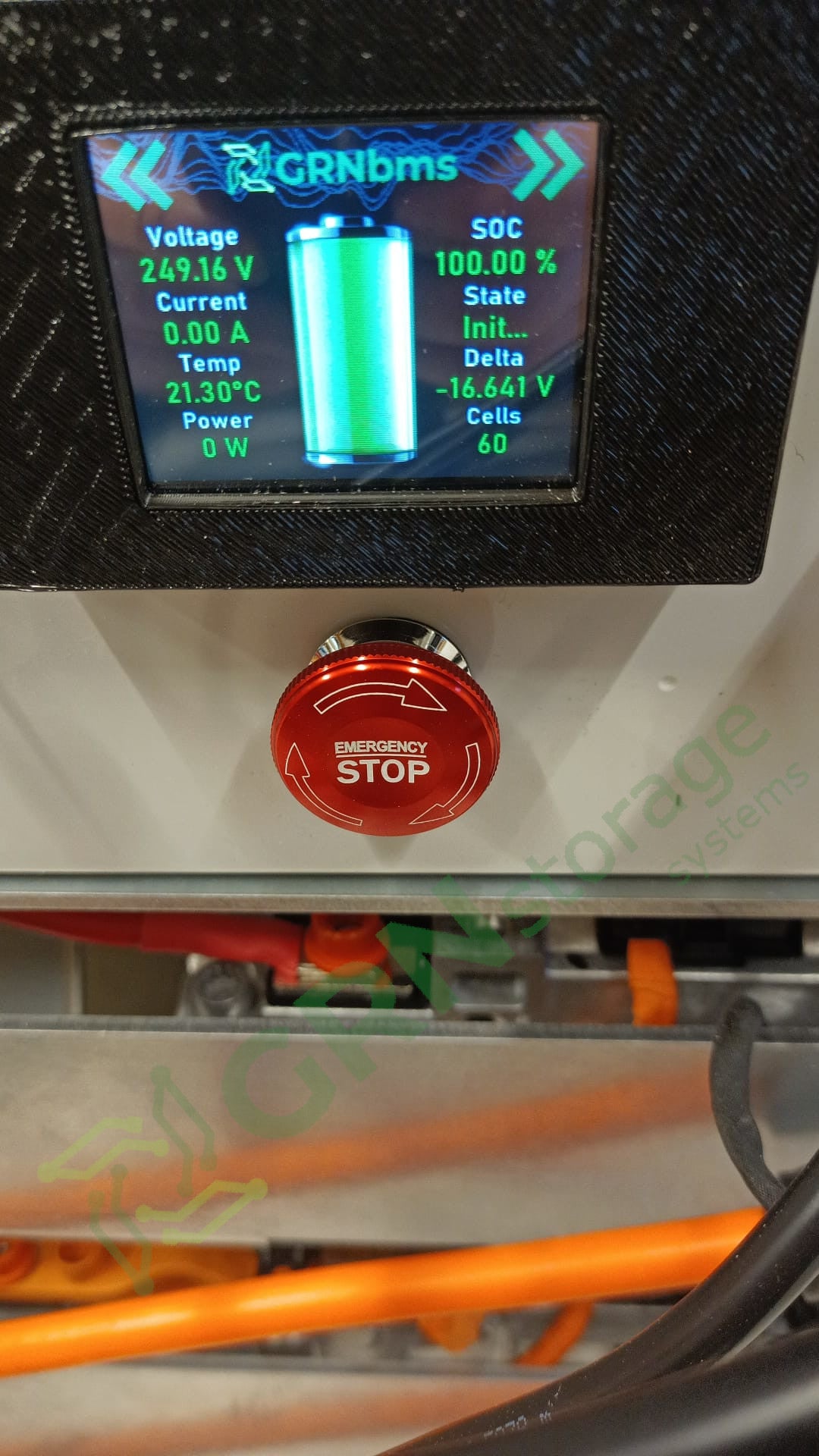

• GRNbms MK2 incl. touch screen
• GRNdistribution
• GRNhvextension
• High quality "TE" Positive and Negative Main Relay
• High quality "TE" Precharge Relay
• LEM CAB current sensor
• TripShunt
• HV-breaker
• Precharge resistor

What Batteries i can use ?

All what GRNbms ecosystem can handle

Battery systems up to 500V can be operated with it

for more information, please contact us !
