GRN Storage Systems

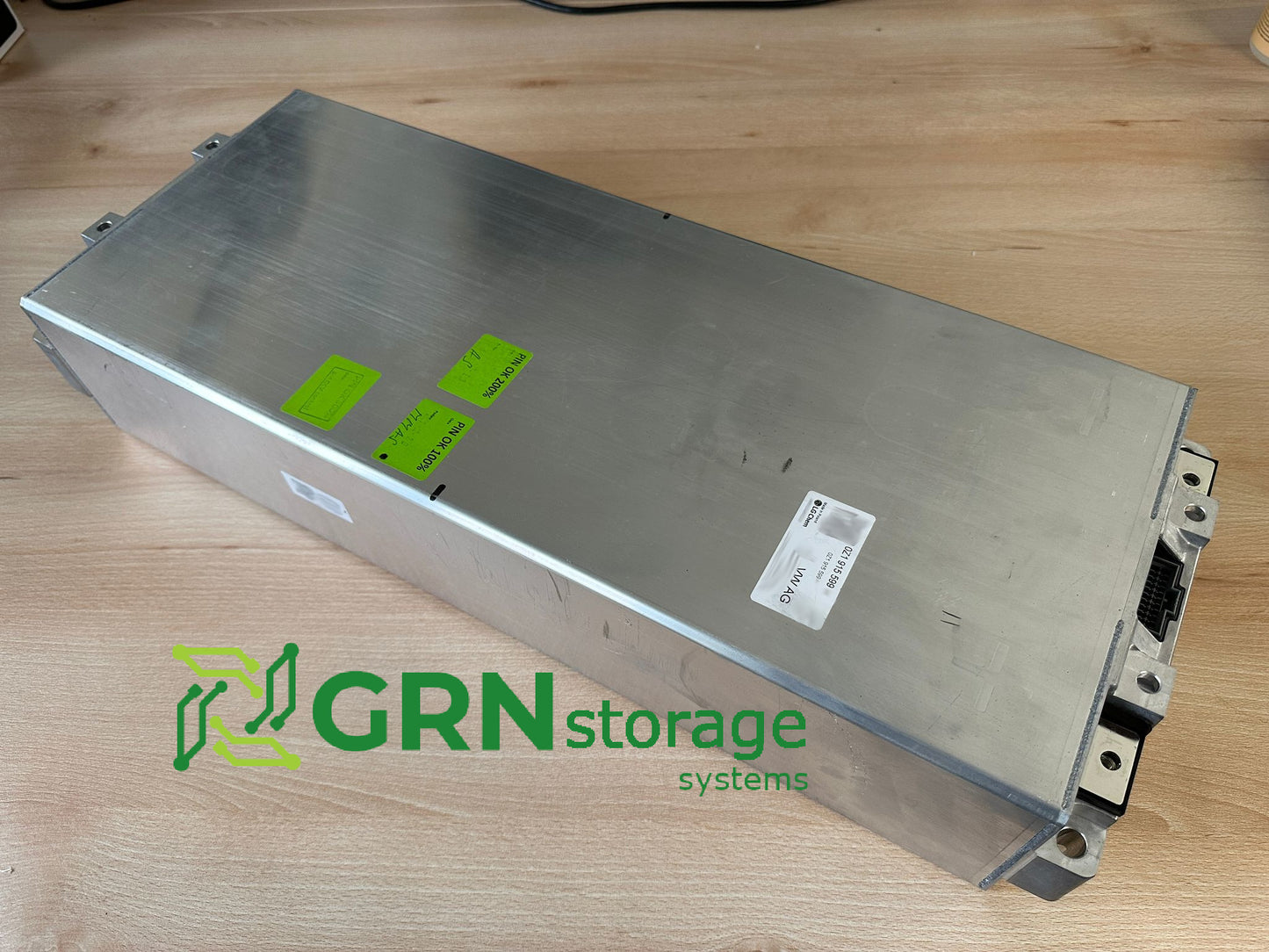

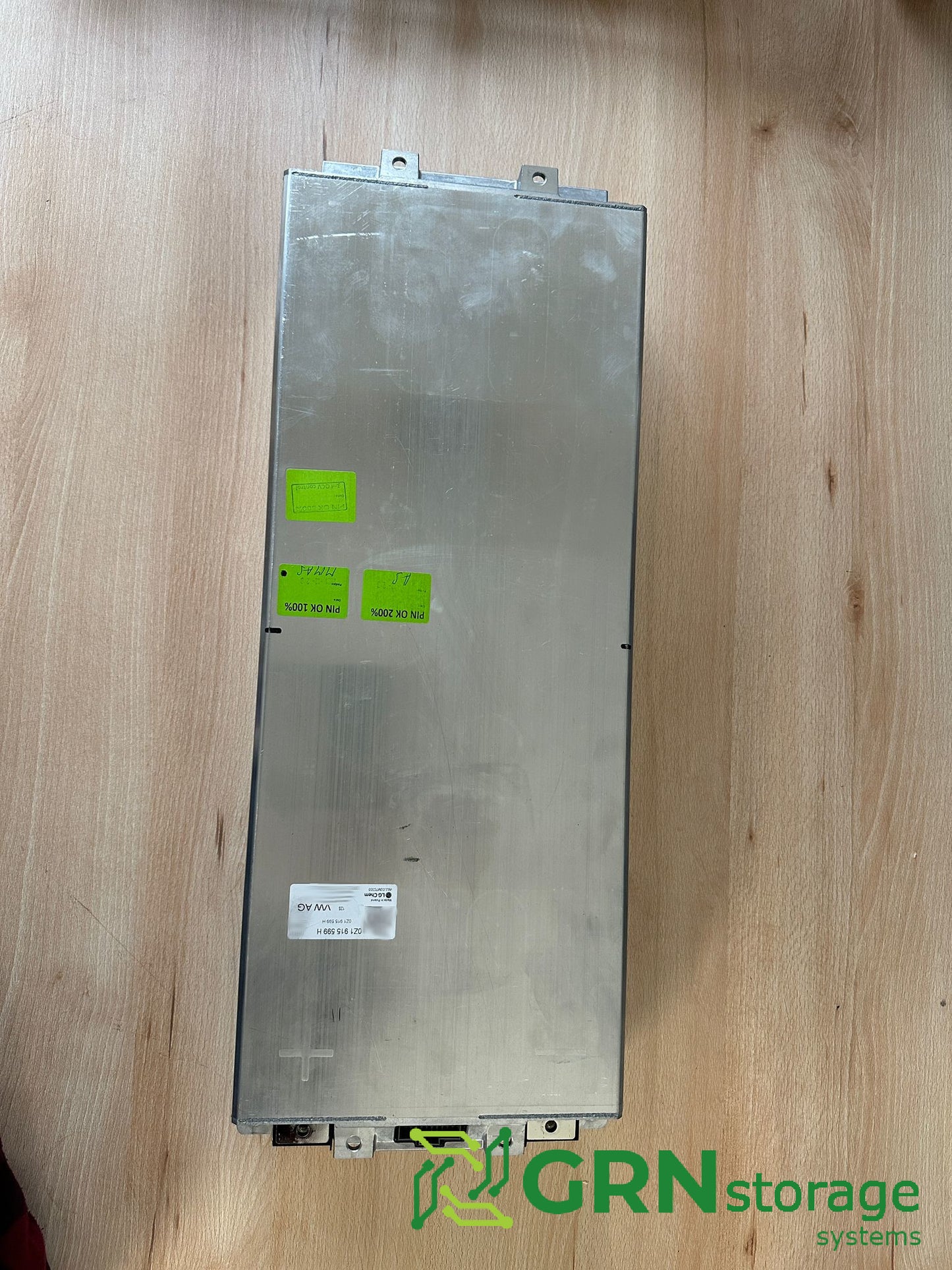

12S 6.85kWh 48V LG Chem ID.3 (MEB) Battery Module

12S 6.85kWh 48V LG Chem ID.3 (MEB) Battery Module

Normaler Preis €1.025,00 EUR
Normaler Preis Verkaufspreis €1.025,00 EUR
Sale Ausverkauft

Batteries with best quality on market, passed quality control of cell delta + capacity.

LG Chem MEB ID.3 Module Specification LG Chem

Part no. 0Z 1915 592
Module Capacity: 156 Ah
Nominal voltage 44.4V
Module Circuitry: 12S2P
Length 590mm
Width 225mm
Height 110mm
Weight 32kg
Terminal bolt size M6

Balancing current of the VW ID modules is very low, and only use about 100 mA of passive cell balancing. Higher currents will damage the cell tap wires in the modules or blow the internal fuse.

Charge voltage cut-off:

                 Cell = 4.15V
                 Module = 49.8V

Discharging cut-off:

                 Cell = 3.3V
                 Module = 39.6v

Maximum Discharging Current (10 sec.): 800 Amps
